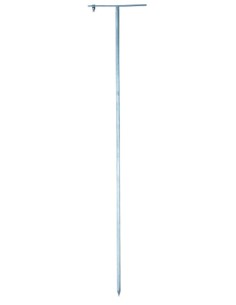

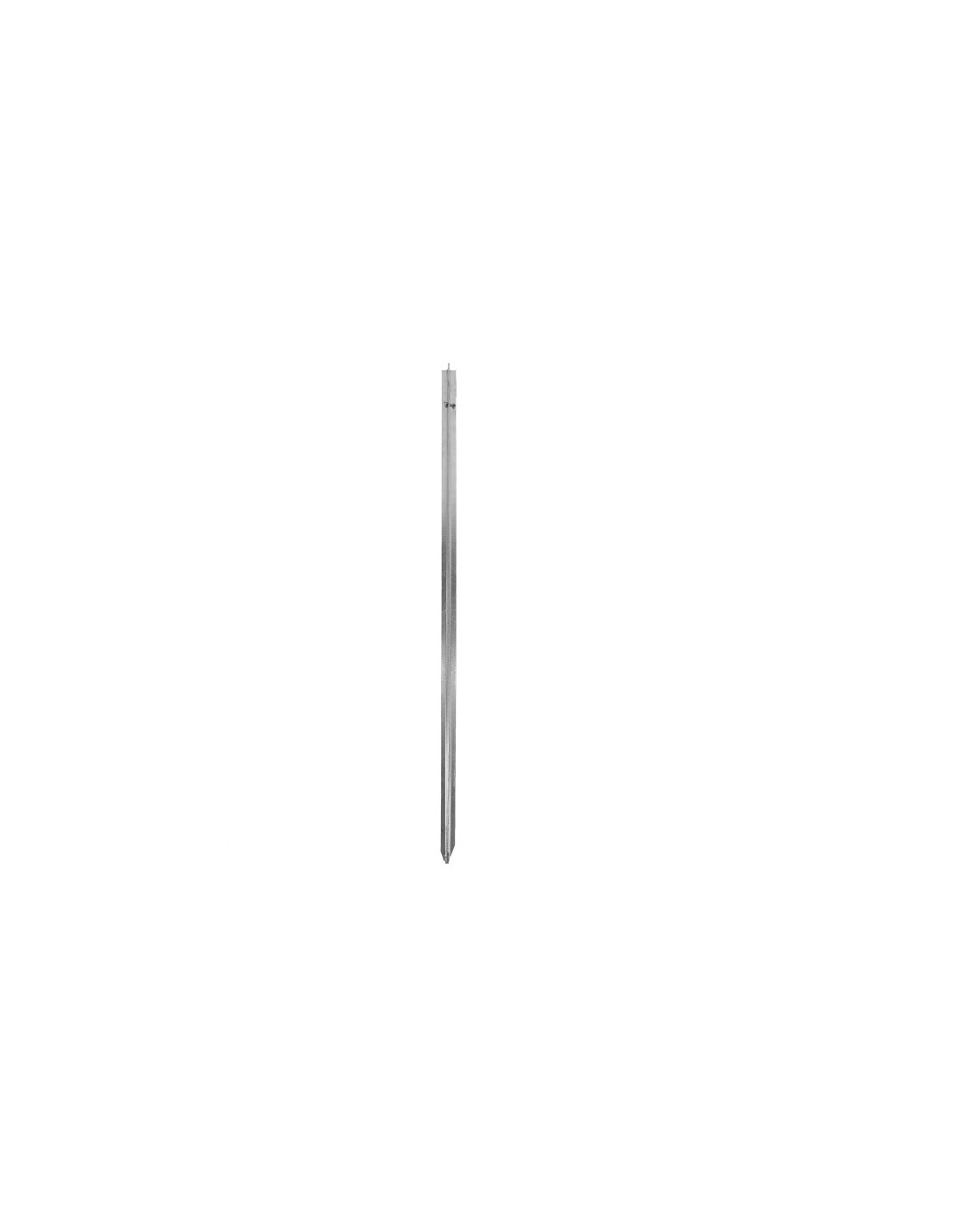

Special Ground Rod 1 m

• made of galvanized T-shaped steel incl. M8 screw (stainless steel) for ground connection cable

fine underground and grounding equipment warranted a ideal tending safety

Step by step on how to check your earthing:

1.Use a Gallagher tester or Ako Digitel Fence tester

2.Turn off the energiser

3.Place an iron rod/post against your fence at a 100 meter distance from your earthing system

4.Turn the energiser back on

5.Make sure that there is less than 1.0 kV on your fence

6.When this is not the case while the iron post is touching the fence, you add as many iron posts as needed to make sure the voltage level drops below 1.0 kV

7.Measure the voltage on the earth stake with a digital volt meter

8.The voltage on the earth pen should read less then 0.3 kV. If so, the earthing is working fine.

9.Is it reading a higher voltage than 0.3 kV, another earth stake needs to be added.
