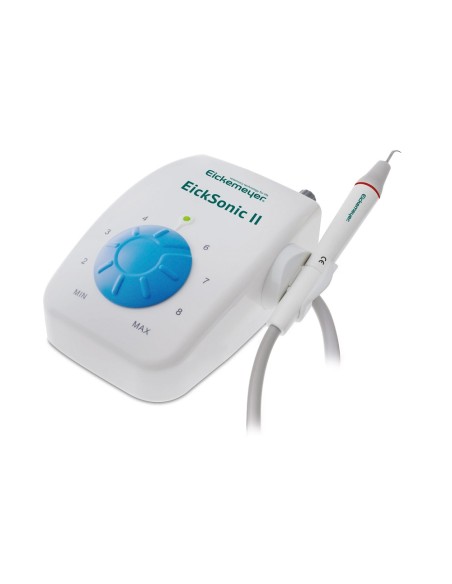

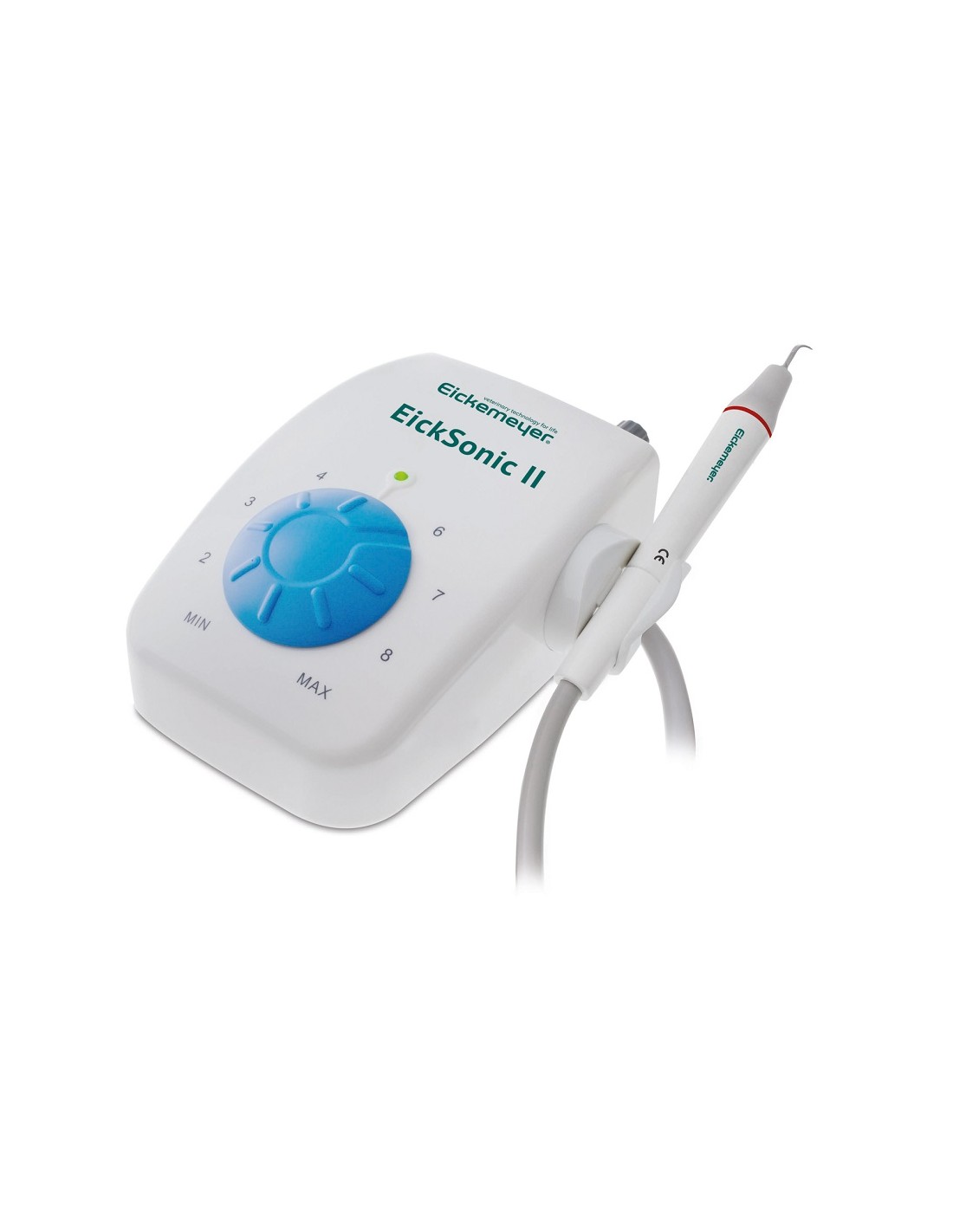

EickSonic II Dental Scaler

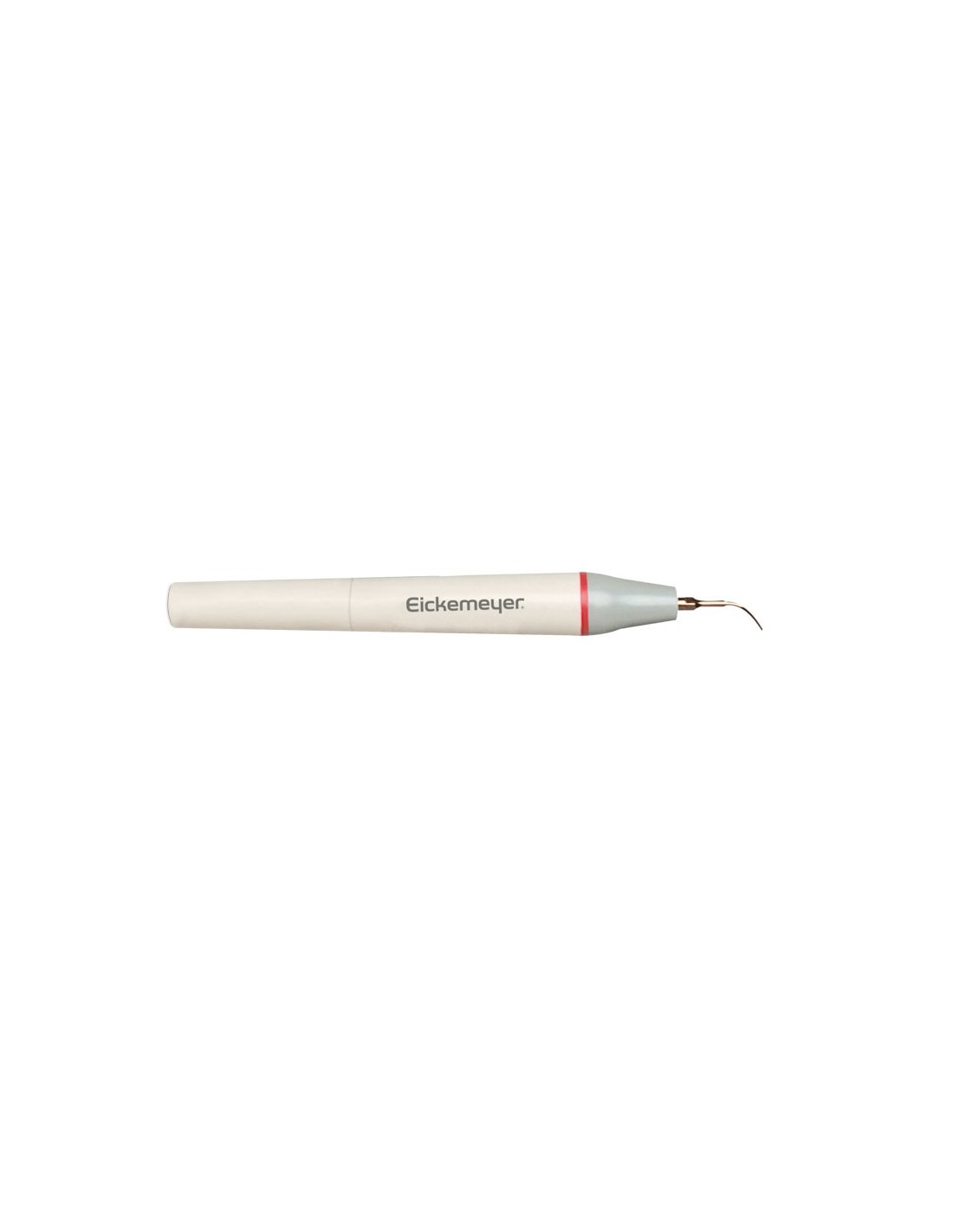

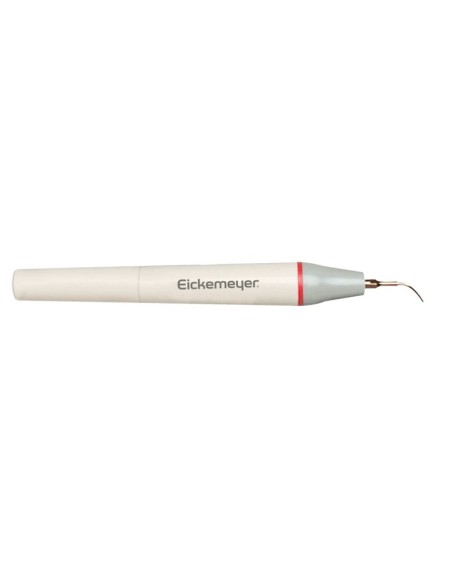

• With illuminated LED handpiece (removable)
• High performance (28 kHz)
• With modern Piezo technologies
• Suction power control
• Water connection hose with connector for 3/8" water line
• Very easy to use
• Compact, durable design
• Best price-performance ratio

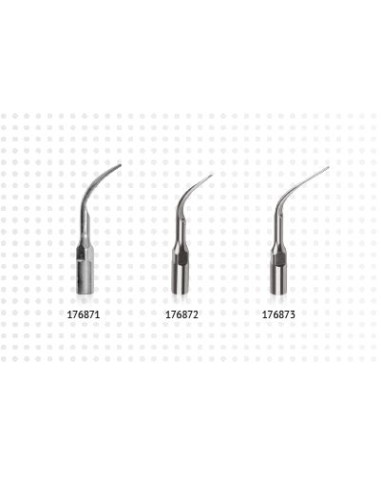

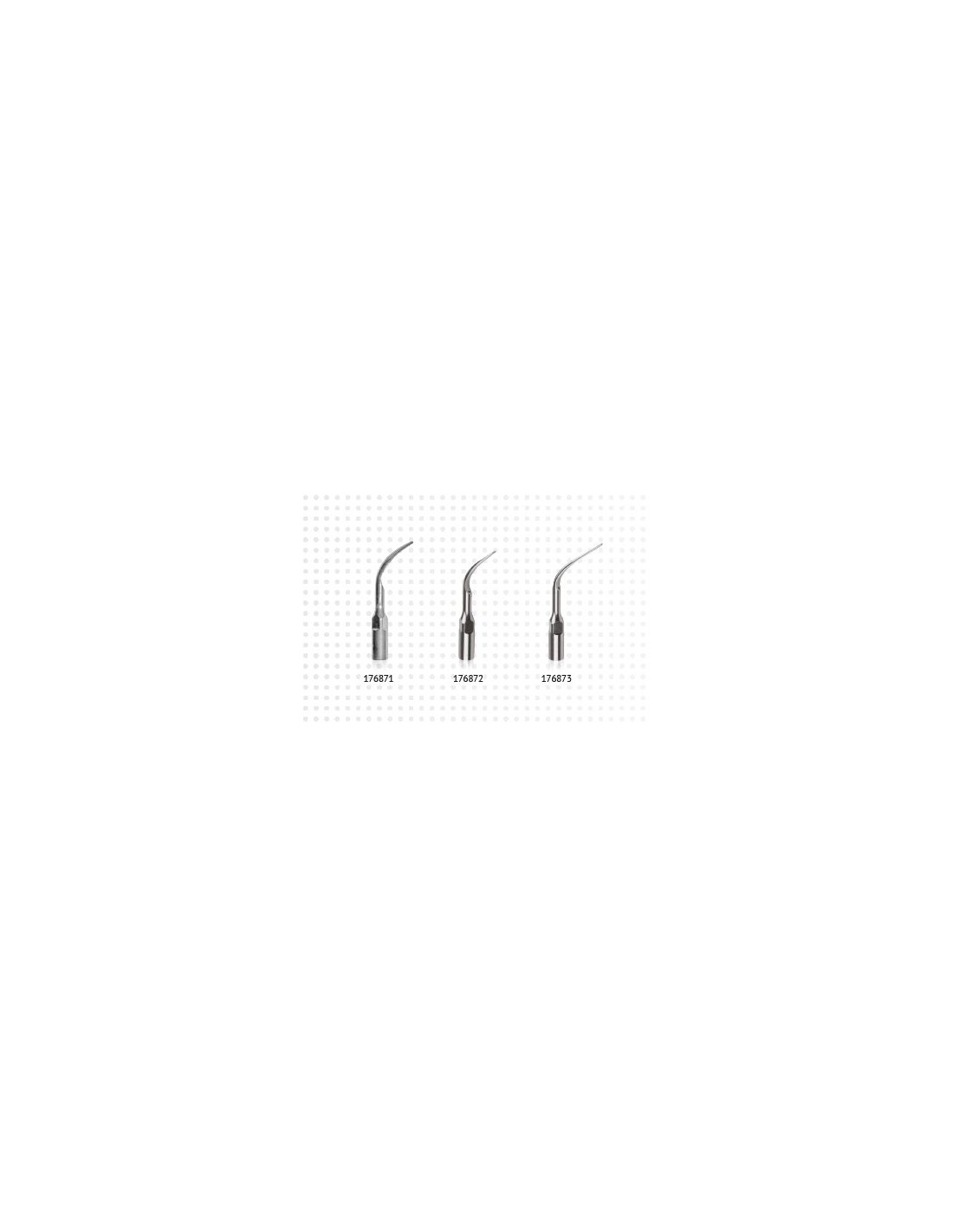

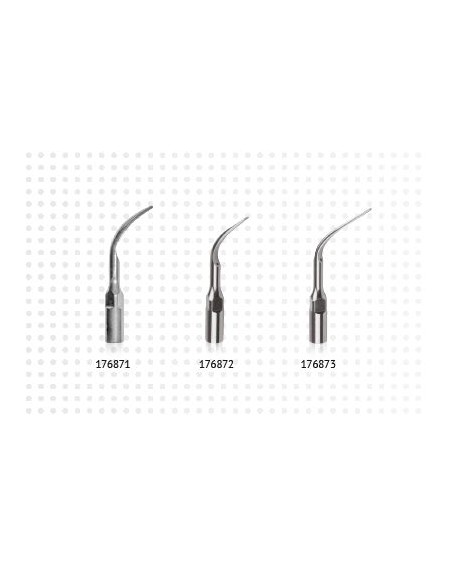

• Includes: 5 tips (2x flat/ wide; 2x flat/ pointed; 1x punctiform)

Main Technical Specifi cations:

• Power supply input 220 – 240 V (AC), 50 / 60 Hz, 150 mA
• Main unit input 24 V (AC), 50 / 60 Hz, 1.3 A
• Output tip vibration frequency 28 kHz ± 3 kHz
• Output power 3 – 20 W
• Main unit fuse T 1.6 AL, 250 V
• Power supply fuse T 0.5 AL, 250 V
• Water pressure 0.1 – 5 bar (0.01 – 0.5 MPa)
• Weight of main unit 0.75 kg
• Weight of power supply 1 kg
• Operating mode Continuous operation
• Type of protection against electric shock Class II
• Degree of protection against electric shock Type BF equipment
• Degree of protection against harmful
• ingress of water
• Ordinary equipment (IPX0), protection degree against water (used on the foot
• switch): IPX1
• Working conditions Environment temperature: 5 – 40 °C
• Relative humidity: ≤ 80 %
• Atmospheric pressure: 70 – 106 kPa
